6000psi SS304 Double Ferrule High Pressure Needle Valve 1/4" NPT

Brand Name : AFK

Model Number : NV33

Certification : CE

Place of Origin : China

MOQ : 1~10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel,SS304

Port size : 1/8" 1/4" 3/8" 1/2"

Pressure : High Pressure

Temperature of media : High Temperature

Standard or nonstandard : Standard

Media : Gas

Size : 3/4",1/4" NPT

Valve type : 2 way

Contact Now

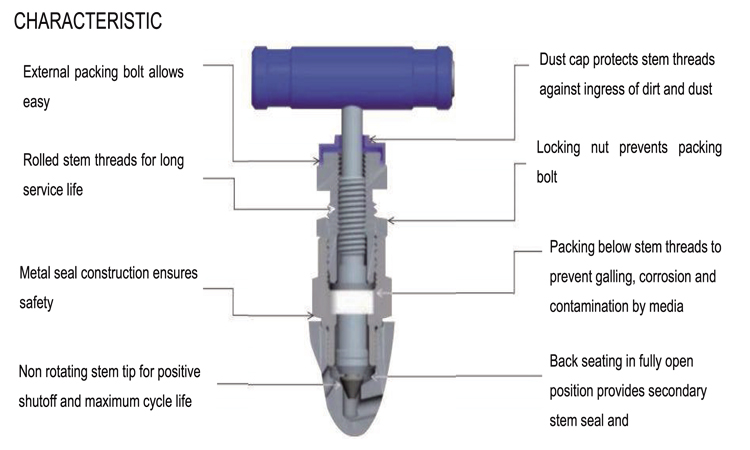

FEATURES

Square bar stock body
Body material in Stainless Steel SS316/316L
Max.working pressure to 6000psi(413 bar) at 37℃(100℉)
TFM1600 packing as standard; Graphite packing for option
100% factory tesred

TEST

Each AFK series needle valve is factory tested with nitrogen at 1000 psig(69 bar).

PRESSURE RATINGS OF VALVES WITH JPE COMPRESSION END CONNECTION ARE DETERMINED BY THE TUBING MATERIAL AND WALL THICKNESS.FOR MORE INFORMATION, PLEASE SEE AFK TUBE RTTING CATALOG.

6000psi SS304 Double Ferrule High Pressure Needle Valve 1/4" NPT

PACKING MATERIALS & PRESSURE TEMPERATURE RATINGS

Body Material	SS316/316L
Packing Material	TFM1600	GRAPHITE
Temperature.C ("F)	Working Pressure psig(bar)
-53°C	6000(413)	6000(413)
93(200)	5160(355)	5160(355)
121(250)	4910(338)	4910(338)
148(300)	4660(321)	4660(321)
176(350)	4470(307)	4470(307)
204(400)	4280(294)	4280(294)
232(450)		4130(284)
260(500)		3980(274)
315(600)		3760(259)
371(700)		3600(248)
426(800)		3460(238)
482(900)		3280(225)
537(1000)		3030(208)

	Packing Material	Body Material	Temperature Rating
Stan Xrd	TFM1600	SS316/316L	-53°C (-65°F) ~ +210°C(410°F)
Optional	GRAPHITE	SS316/316L	-53C (-65F)~ +537*C(1000°F)

6000psi SS304 Double Ferrule High Pressure Needle Valve 1/4" NPT

ORDERING INFORMATION

C	NV	33-	S6-	02		A	T	D4
CL ASSIFI-CA	PRODUCT NAME	VALVE TYPE	MATERIAL	SIZE (FRACTIONAL)	SIZE (MRTRIC)	CONNECTION TYPE	PACKING	ORIFICE
C :VALVE	NV :NEEDLE VALVE	1 :FORGED	S6 :SS316	02 :1/8*	4:4mm	A:AFK TUBE END	PACKING	D4:4mm
			S6 L:SS316L	04 :1/4"	6:6mm	MR :MALE BSPT THREAD	PACKING	D6:6mm
				06 :3/8*	8:8mm	FR :FEMALE BSPT THREAD		D8:8mm
				08 :1/2"	10 :10mm	MN :MALE NPT THREAD		D10:10mm
					12 :12mm	FN :FEMALE NPT THREAD		D12:12mm
					14:14mm	BW:BUTT WELD		D15:15mm
					15:15mm	SW:SOCKET WELD
					16: 16mm	UW:UNION WELD
					18:18mm
					20:20mm
					22:22mm
					25:25mm
					28:28mm
					32:2mm
					34:34mm

6000psi SS304 Double Ferrule High Pressure Needle Valve 1/4" NPT
