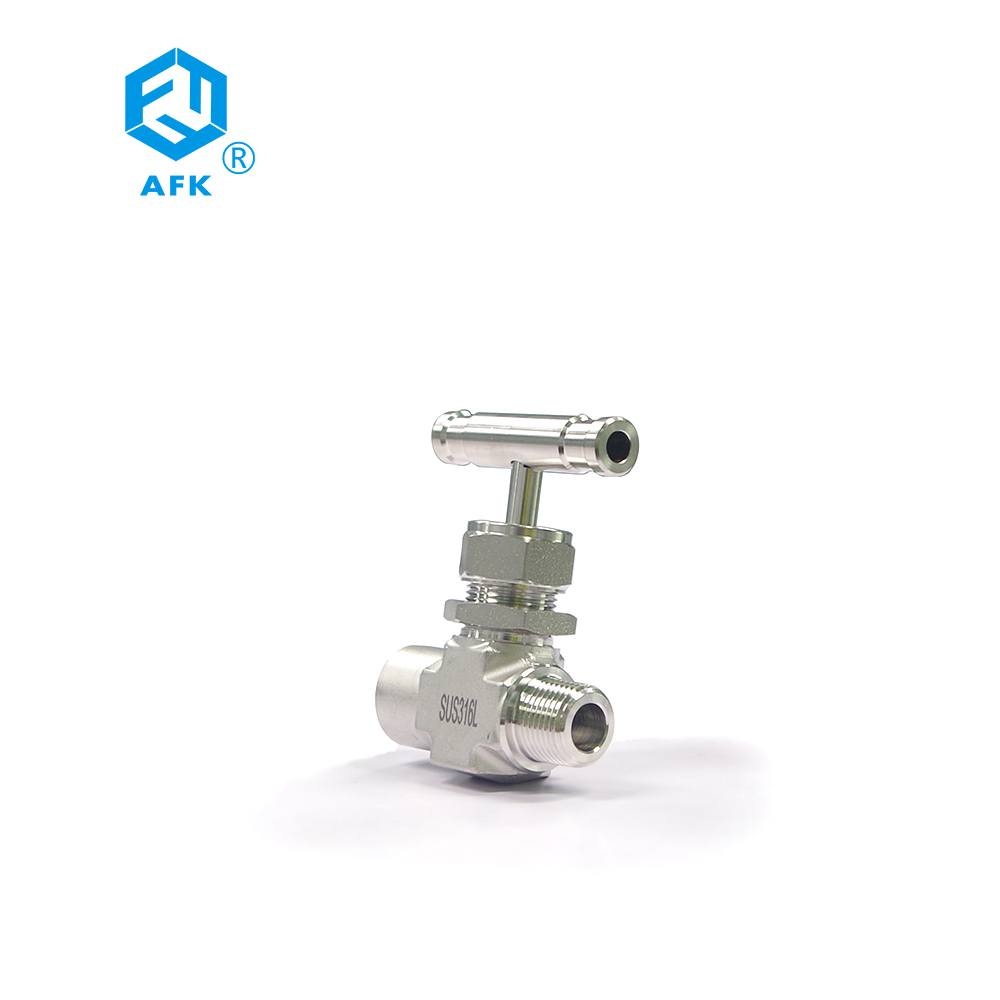

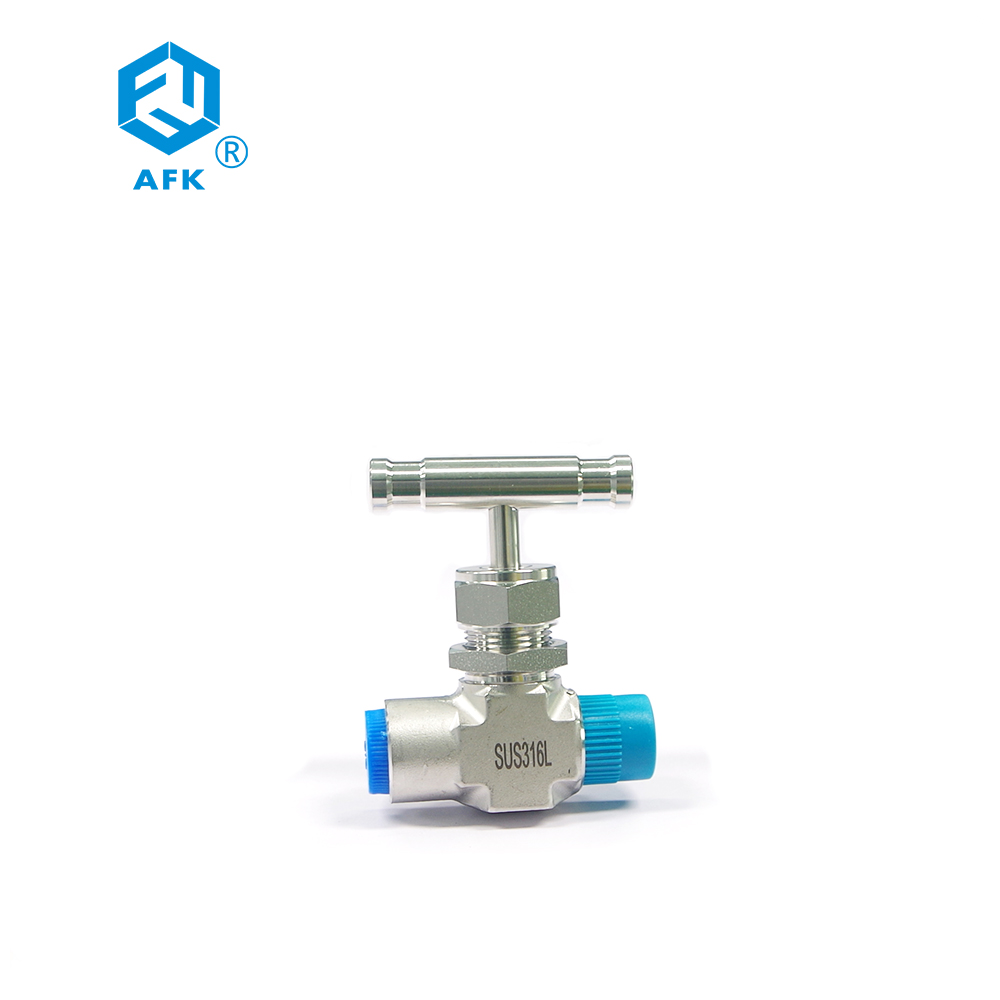

2 Way 6000PSI SS316 High Pressure Needle Valve 413bar Gas Media

Brand Name : AFK

Model Number : NV

Certification : CE

Place of Origin : China

MOQ : 1-9

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel

Media : Gas

Application : General

Name : High Pressure Needle Valve

Standard or nonstandard : Standard

Product name : hydraulic ball valve

Contact Now

  • Dynamic load sealing system
  • Compact design
  • Working pressure up to 6000PSI (413bar)
  • Up to 315 ° C (600 ° f)

characteristic:



  • Quadrangle bar body
  • The body is made of stainless steel SS316 / 316L
  • The maximum working pressure is 6000PSI (413bar) at 37 ℃ (100 ℃)
  • The standard material of packing is tfm1600, and graphite packing is also available
  • 100% factory testing

Packing material & pressure stability range:

Body material ss316/316L
packing material TFM1600 GRAPHITE
temperature ℃(℉) temperature range, psi (bar)
-53℃ 6000(413) 6000(413)
93(200) 5160(355) 5160(355)
121(250) 4910(338) 4910(338)
148(300) 4660(321) 4660(321)
176(350) 4470(307) 4470(307)
204(400) 4280(294) 4280(294)
232(450)   4310(284)
260(500)   3980(274)
315(600)   3760(259)
371(700)   3600(248)
426(800)   3460(238)
482(900)   3280(225)
537(1000)   3030(208)



  packing material Body material temperature resistance
standard TFM1600 SS316/316L -53℃(-65℉)~+210℃(410℉)
selection GRAPHITE SS316/316L -53℃(-65℉)~+537℃(1000℉)



Material structure:

Item part name quantity Material
1 Handle 1 Aluminum
2 handle fixing screw 1 SS304
3 valve stem 1 SS316/316L
4 dust cover 1 PVC
5 packing screw 1 SS316/316L
6 fixing cover 1 SS304
7 valve cover 1 SS316/316L
8 gland 1 SS316/316L
9 upper packing 1 TFM1600
10 lower packing 1 TFM1600
11 valve core 1 SS630
12 body 1 SS316/316L



Selection table:

C NV 33- S6- 02 A T D4
Product category product name valve type material size (English system) size (metric system) connection method packing hole diameter
C:Valves NV:Needle 1.straight through corner

S6:SS316



 01:1/8" 4:4mm A:Ferrule type T:TFM1600 D4:4mm
      S6L:SS316L 02:1/4" 6:6mm MR:external thread PT G:graphite D:6:6mm
        03:3/8" 8:8mm FR:internal thread PT   D:8:8mm
        04:1/2" 10:10mm MN:external thread NPT   D:10:10mm
          12:12mm FN:internal thread NPT   D:12:12mm
          14:14mm BW:butt welding type   D:15:15mm
          15:15mm SW:sleeve welding type
          16:16mm UW:union welding type
          18:18mm
          20:20mm
          22:22mm
          25:25mm
          28:28mm
          32:32mm
          34:34mm



2 Way 6000PSI SS316 High Pressure Needle Valve 413bar Gas Media

2 Way 6000PSI SS316 High Pressure Needle Valve 413bar Gas Media
