316L Back Pressure Valve Stainless Steel Gas Pressure Valve

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : R71

Supply Ability : 10000 Set/Sets per Week

Packaging Details : Export packing

MOQ : >=1 Sets

Price : Negotiable

Certification : CE

Body thread : 1/4"NPT Female

Maximum inlet pressure : 250 psig

Structure : Diaphragm-sensed single-stage

Proof pressure : 1.5 times of maximum rated presure

Working temperature : -40° F ~+165° F(-40°C+74°C)

Leakage rate : 2*10-8 atm cc/sec He

Cv : 0.08

Body material : 316L

Seat : PTFE, PCTFE

Diaphragm : 316L

Port : SHENZHEN

Contact Now

316L Back Pressure Valve Stainless Steel Gas Pressure Valve

Product Specification

1) Single-stage configuration

2)Body port: 1/4" NPT(F)

3)2" Pressure Gauge: 1.5 times maximum inlet pressure

4)Temperature range: -40℉ to 165℉ (-40℃ to 74℃)℉

5)Leak Rate: 2 x 10-8atm.cc/sec He

6)CV:0.08

7)Material: Stainless steel or Brass

Main Features

Name: RW71 Back pressure regulator
Brand: AFK
Original: China
RW71 Series regulator is a diaphragm-sensed single-stage, High Purity-style regulator, designed for application where a constant back pressure is desired. Available in nickel-plated brass and stainless steel.

Features

*Body: 316L

*Seat: PCTFE, PTFE

*Diaphragm: 316L

Typical applications

*Process Control

*Laboratories

*Petrochemical industry

*Power plant equipments

Detailed Images

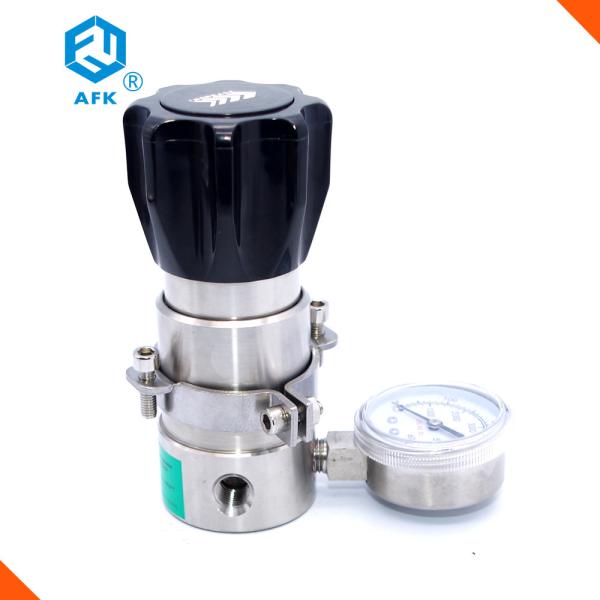

316L Back Pressure Valve Stainless Steel Gas Pressure Valve

ORDERING INFORMATION
SERIES	BODY MATERIAL	BODY PORTS	INLET PRESSURE	GAUGES	INLET CONNECTION	OUTLET CONNECTION	Optional
RW71	L	A	D	G	02	02	P
	L: 316L B: brass	A B	G: 0-250Psi I:0-100Psi K:0-50Psi L:0-25Psi	W: None P: psi/bar G: Mpa	00:1/4"NPT(F) 01:1/4"NPT(M) 10:1/8" LOK 11:1/4" LOK 12: 3/8" LOK	00:1/4"NPT(F) 01:1/4"NPT(M) 10:1/8" LOK 11:1/4" LOK 12: 3/8" LOK	P: Panel mounting
