Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : 300P

MOQ : 10-49 Pieces

Price : Negotiable

Certification : None

Port Size : 3"

Structure : Other

Type : Normally closed

Connection : BSP female/male threaded, flanged

Standard or Nonstandard : Standard

Contact Now

80mm BSP female 2 way solenoid valve irrigation

Specification

No.	ITEM	TECHNICAL PARAMETERS
1	material	nylon plastic body, NBR seal
2	Fluid	water
3	Fluid temperature	≤43°C
4	Environment temperature	≤52°C
5	Service voltage	6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
6	Pulse width	20-500mSec (only for latching type)
7	Coil resistance	6 Ω
8	Capacitance	4700uF
9	Coil inductance	12mH
10	Connection	G(BSP) female thread is regular, special order for NPT(3/4" and 1")
11	Size	075D: 3/4", 20mm (BSP or NPT female) 100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange)
12	Working pressure	3/4" and 1": 1-10bar 1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar
13	Flow rate	3/4": 5 m³/h 1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h
14	Operation mode	valve element lock position,valve open, release position, valve close.

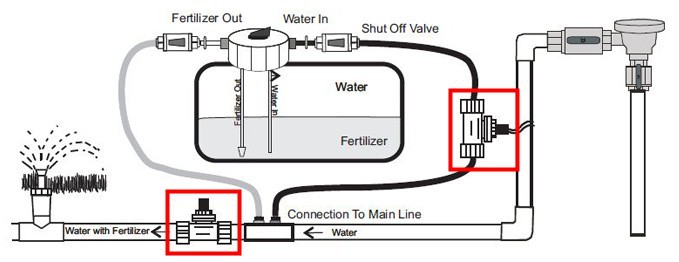

Irrigation System

80mm Irrigation Solenoid Valve BSP Threaded 2 Way Solar Power Normally Closed
