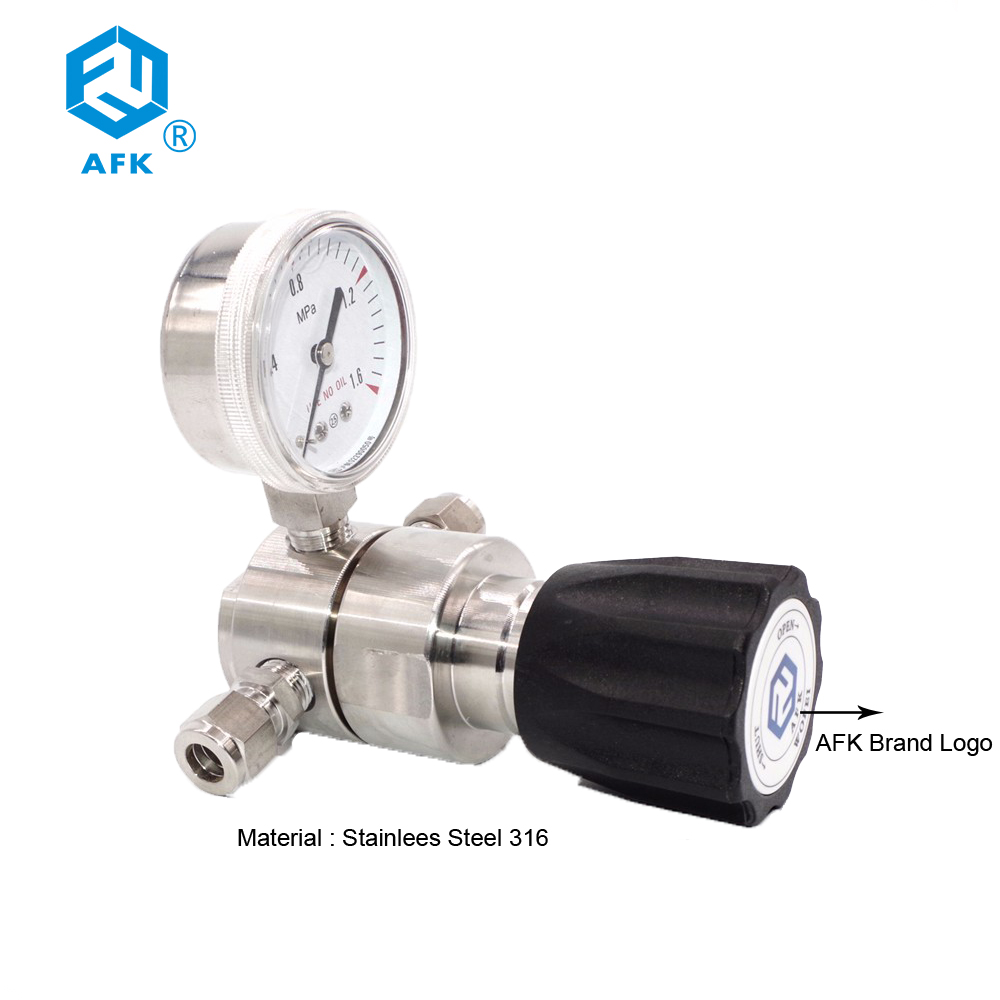

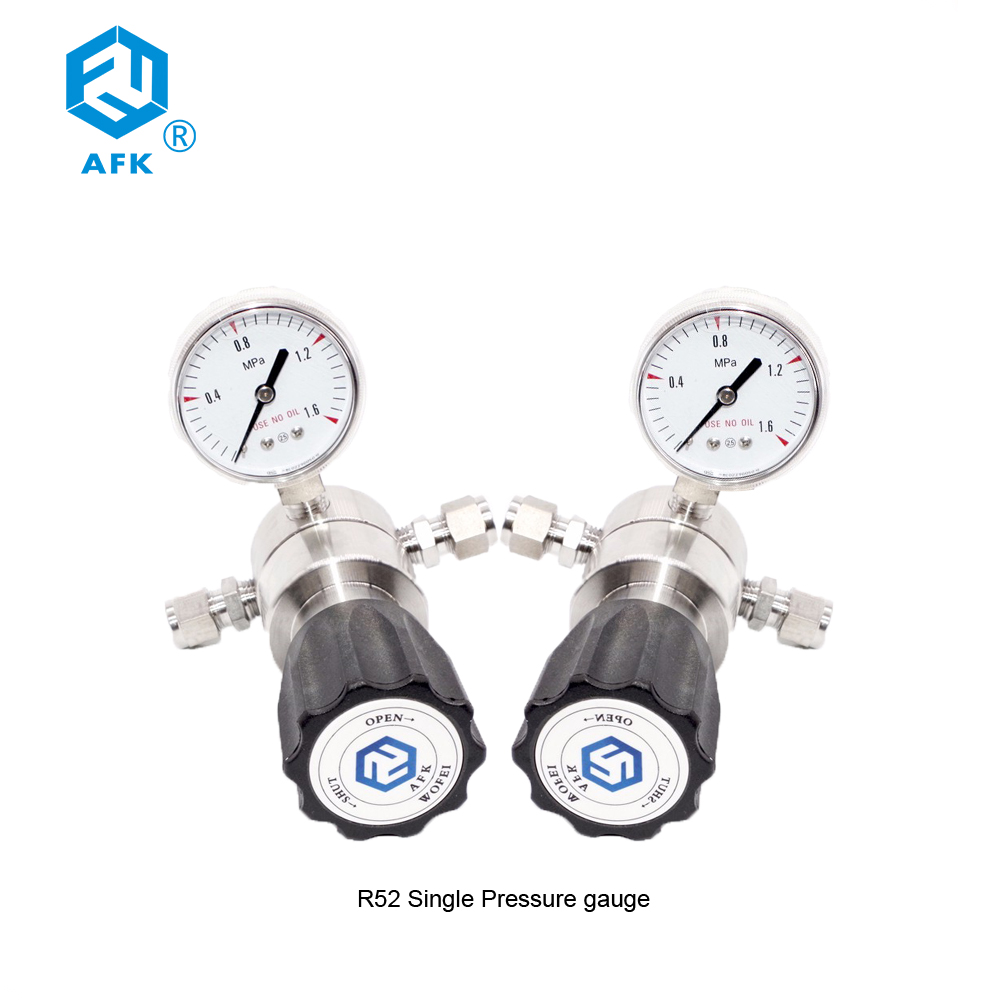

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig

Brand Name : AFK

Model Number : R52

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

After-sales service provided : Online support

Material : Stainless Steel,SS304/SS316L,316

Warranty : 1 Year

Cv : 0.15

Structure : Diaphragm

Outlet pressure range : 0~15, 0~25, 0~50, 0~100, 0~250 psig

Valve seat : FCTFE, PTFE

Contact Now

Product description

R52 Series stainless steel pressure reducer has a diaphragm pressure reducing contruction, stable output pressure. It is used usually in laboratory, pharmacy, chemical industry etc.

Main Features	Typical applications
Diaphragm pressure-reducing structure Body Thread : 1/4" NPT ( F ) Filter mesh inside Panel mountable or wall mounted Metel-to-metal diaphragm seal	1) Laboratory 2) Gas analysis 4) Gas bus-bar 5) Petrochemcial industry 6)Testing equipment

Material List

Tenchnical Data

Body:316L, Brass

Roof :316L, Brass

Diaphragm:316L

Filter mesh:316L (10μm)

Valve seat:PCTFE, PTFE, Vaspel

Spring loaded:316L

Stem:316L

Max inlet pressure:500, 1500, 3000psig

Outlet pressure:0~15, 0~25, 0~50, 0~100, 0~250 psig

Proof pressure:1.5 times of maximum rated pressure

Working temperature:-20°F-+150°F(29°C-+66°C)

Leakage rate:2*10-8 atm cc/sec He

Cv:0.15

Body Thread:1/4" NPT ( F )

AFK FCTFE PTFE High Pressure Single Gauge OD Compression Fitting 3000psig

R52	L	B	D	G	G	00	00	P
ltem	Body Material	Body Hole	Inlet pressure	Outlet pressure	Pressure gauge	Inlet size	Outlet size	Options
R52	L:316	A	D:3000psig	G:0~250psig	G:MPa gauge	00:1/4" NPT(F)	00:1/4" NPT(F)	P:Panel mounting
	B:Brass	B	E:1500psig	l:0~100psig	P:Psig/bar gauge	01:1/4" NPT(M)	01:1/4" NPT(M)	R:With rllief valve
		D	F:500psig	K:0~50psig	W:No gauge	23:CGA330	10:1/8" OD	N:With needle valve
		G		L:0~25psig		24:CGA350	11:1/4" OD	D:With diaphragm valve
		J		M:0~15psig		27:CGA580	12:3/8" OD
		M		Q:30 " Hg Vac-30psig		28:CGA660	15:6mm OD
				S:30 " Hg Vac-60psig		30:CGA590	16:8mm OD
				T:30 " Hg Vac-100psig		52:G5/8M-RH(F)	74:M8B 1-RH(M)
				U:30 " Hg Vac-200psig		63:W21 8-14RH(F)	Other type is available
						64:W21 8-14LH(F)
						Other type is available
