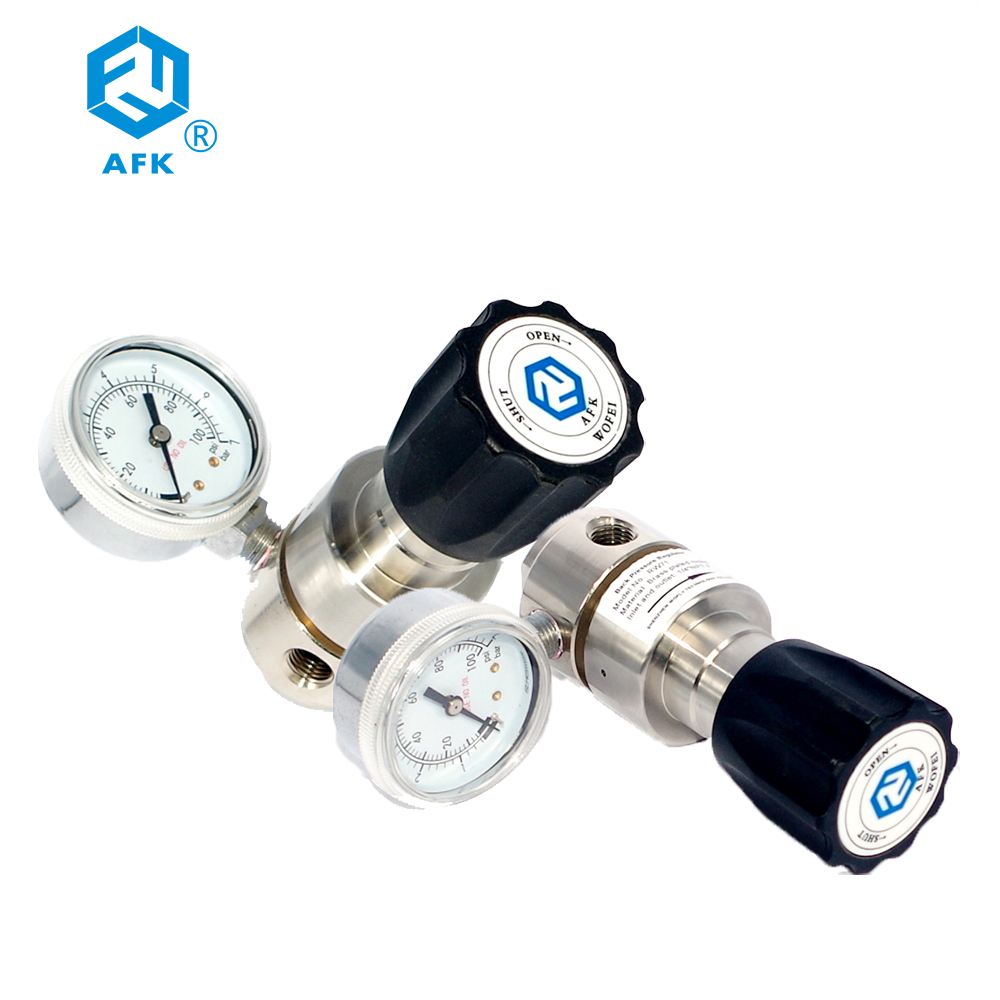

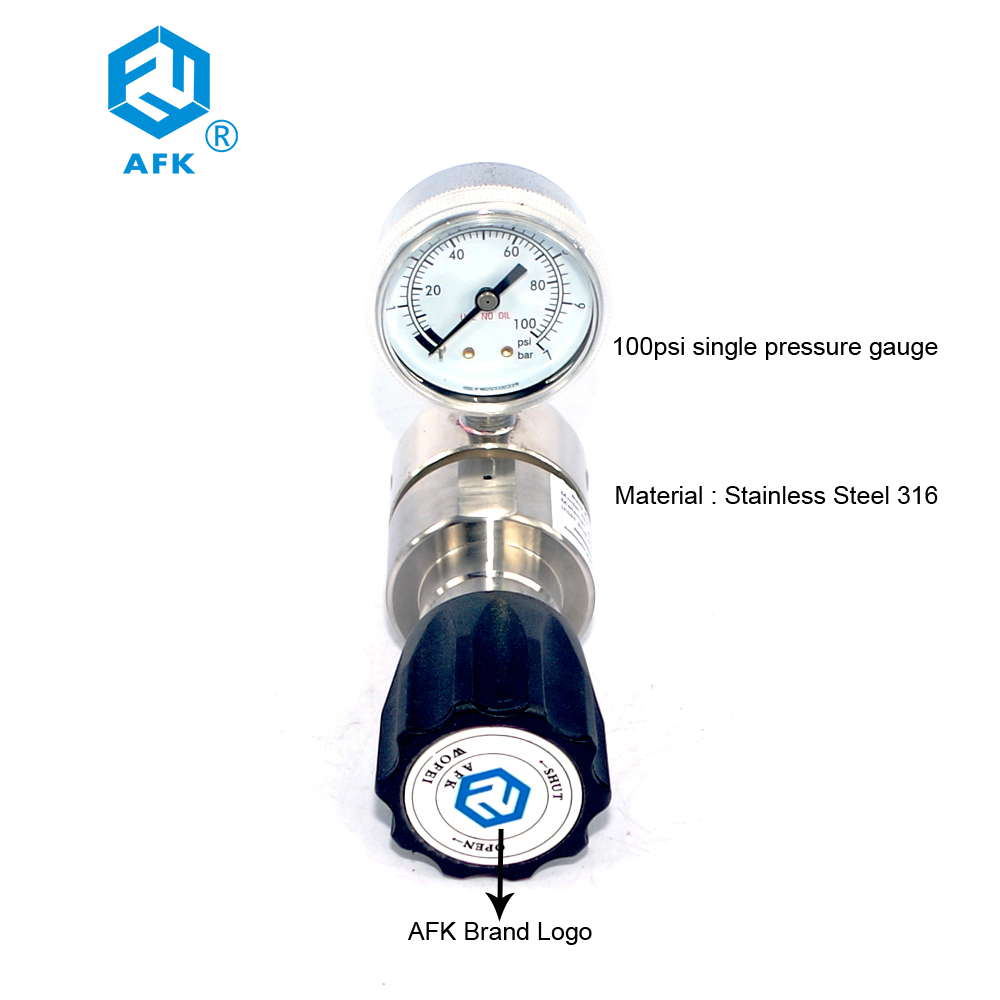

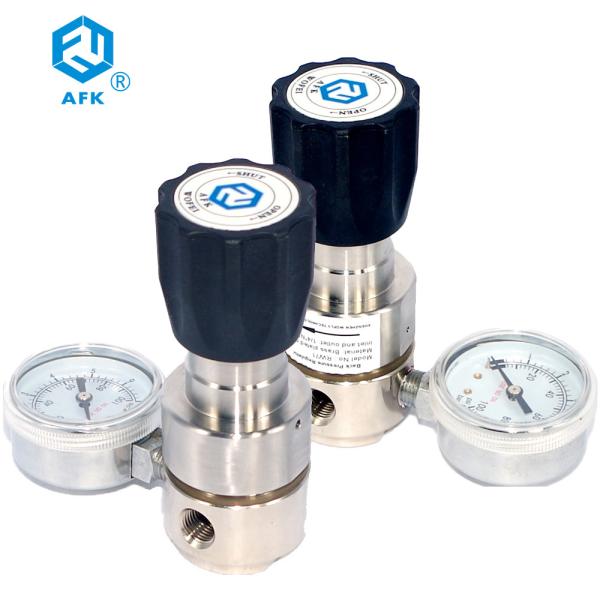

100Psi Stainless Steel Pressure Regulator PCTFE R71 Single Gauge

Brand Name : AFK

Model Number : R71

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

After-sales service provided : Online support

Dimension(l*w*h) : Customerized

Material : Stainless Steel,316

Warranty : 1 Year

Application : Chemistry

vScrew thread : Requirement Thread

Type : Single-stage

Applicable gas : Pure Gas

Contact Now

Product Description

RW71 series low pressure back pressure valve , stainless steel diaphragm pressure transmission , accurate pressure control , used for adjusting the upstream pressure and suitable for pure gas , standard gas , corrosive gas etc.





Material Typical Application
  • Body: 316L, Brass
  • Bonnet: 316L, Brass
  • Diaphragm: 316L
  • Seat: PCTFE, PTFE, Vespel
  • Spring: 316L
  • Stem: 316L
  • Laboratory
  • Gas analysis testing
  • Process control
  • Petrochemical industry
Technical Data Design features
  • Maximum adjustment pressure: 250psig
  • Adjusted pressure: 0~25, 0~50, 0~100, 0~250psig
  • Safety testing pressure: 1.5 times of maximum inlet pressure
  • Working temperature: -40~+165 deg F(-40~+74 Deg C)
  • Leakage rate: 2×10-8 atm cc/sec He
  • Cv value=0.08
  • Metal-to-metal diaphragm seal
  • Body thread: 1/4” NPT(F)
  • Panel mounting and wall mounting available





100Psi Stainless Steel Pressure Regulator PCTFE R71 Single Gauge

100Psi Stainless Steel Pressure Regulator PCTFE R71 Single Gauge

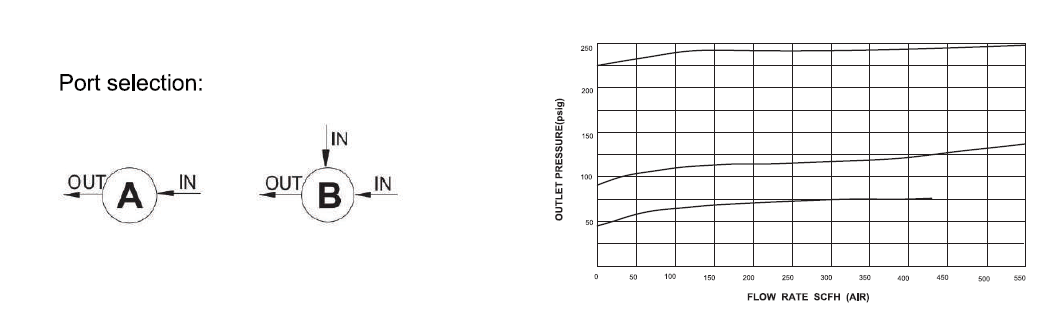

R71 L A G 00 00 P
Item Body Material Body Hole Inlet pressure Outlet pressure Pressure gauge Options
R71 L:316 A F:0~300psig 00: 1/4" NPT (F) 00: 1/4" NPT (F) P: Panel mounting
  B:Brass B G:0~250psig 01: 1/4"NPT (M) 01: 1/4"NPT (M)
      l:0~100psig 10: 1/8" OD 10: 1/8" OD
      K:0~50psig 11: 1/4" OD 11: 1/4" OD
      L:0~ 25psig 12: 3/8" OD 12: 3/8" OD
