High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD

Brand Name : AFK

Model Number : CV

Certification : CE

Place of Origin : Gunagdong,China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 10000 Set/Sets per Week

Packaging Details : Export packing

Materail : Stainless Steel, SS316

Apprecation : General

Pressure : 3000psi

Size : 6mm 8mm 10mm 1/8" 1/4" 3/8" 1/2"

Connection : Ferrule OD

Supply Ability : 10000 Set/Sets per Week

Price : Negotiable

Contact Now

Overview

Quick Details


Place of Origin:Guangdong, China                       Brand Name:AFK

Model Number:CV                                                Application:General

Material:Stainless Steel, SS316                           Temperature of Media:Normal Temperature

Pressure:High Pressure, 3000psi                         Power:Manual

Media:Gas                                                            Port Size:Standard

Structure:Check                                                   Standard or Nonstandard:Standard

Connection:Ferrule OD                                        Supply Ability:10000 Set/Sets per Week



High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD







Packaging & Delivery


Packaging Details



Export packing

Port:Shenzhen

Lead Time :

Quantity(Sets) 1 - 10 >10
Est. Time(days) 5 To be negotiated



Product Description

Stainless Steel 316 Air Compressor One Way Check Valve

High Pressure No Return Valve



*Product Specification
*Name: Check valve
*Size: 6mm 8mm 10mm 1/8" 1/4" 3/8" 1/2"
*Connection: Ferrule OD
*Pressure: 1000 Psi, 3000psi
*Material: Stainless steel 316

High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD

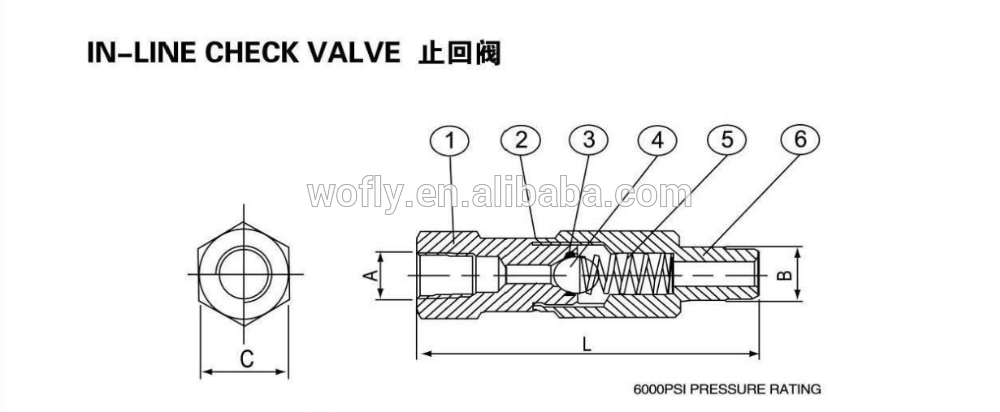

Specification
Number
Part
SS316 VALVE
Brass valve
1



Valve body(Inlet)
SS316
Brass
2
Packing
SS316
Brass
3
O-Ring
fluororubber/BUNA
fluororubber/BUNA
4
Ball
SS316
Brass
5
Spring
SS316
Brass
6
Valve Body(Outlet)
SS316
Brass
Dimensions(inch)
Name
Size
A-PT/NPT/G
B-PT/NPT/G
C-(mm)
D(mm)
CV-01
1/8"
1/8"
1/8"
19
74
CV-02
1/4"
1/4"
1/4"
19
74
CV-03
3/8"
3/8"
3/8"
22
74
CV-04
1/2"
1/2"
1/2"
27
75.5
CV-06
3/4"
3/4"
3/4"
35
83.5
CV-8
1"
1"
1"
41
87.5
Can be customized according to customer's' requirements

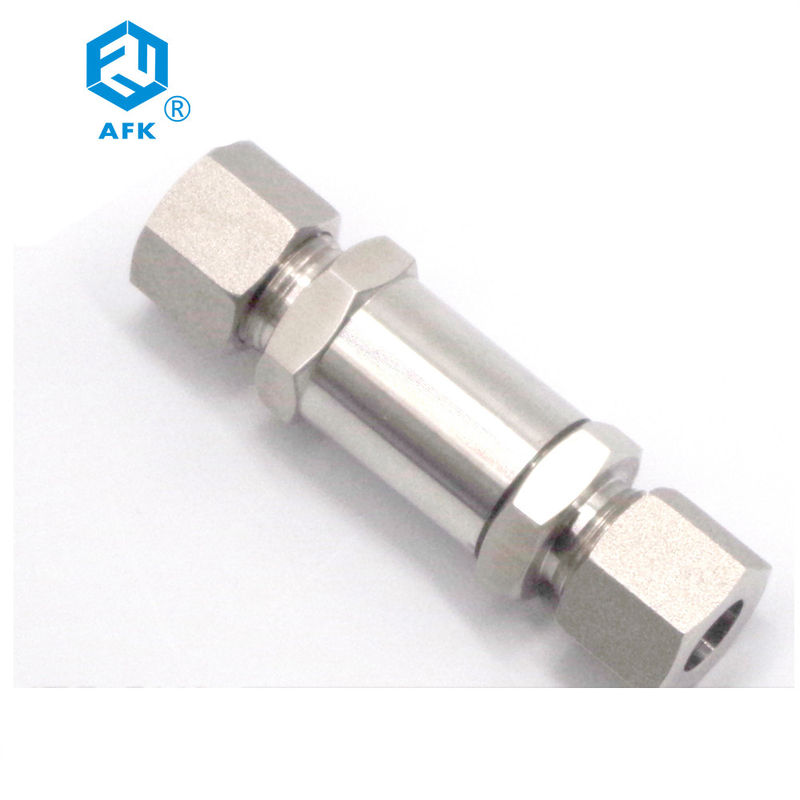

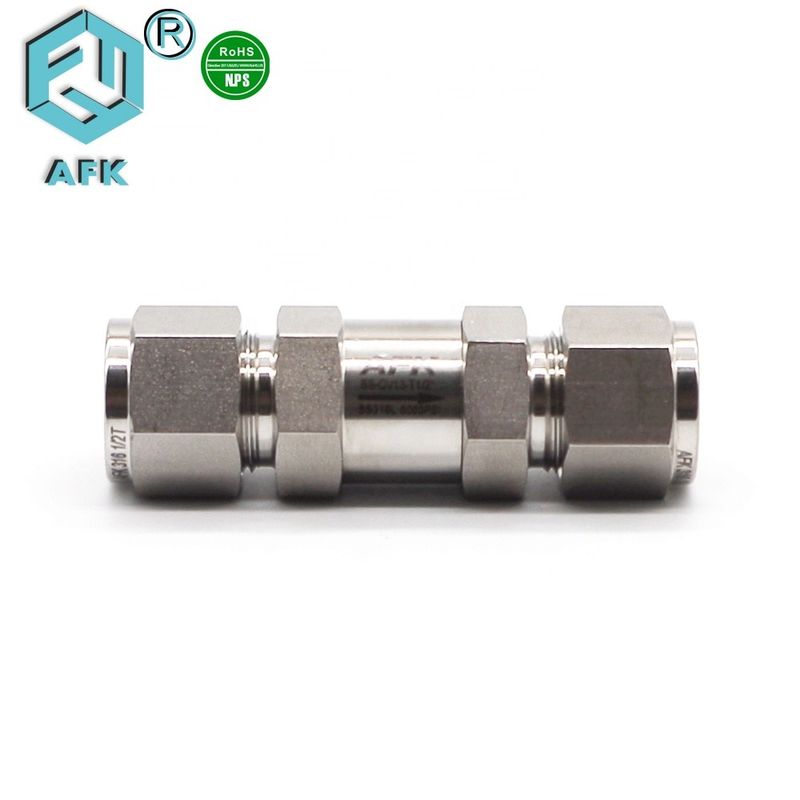

Product Show



High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD

High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD

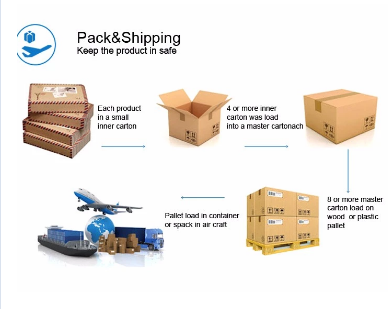

Packing & Delivery

High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD



Packing

Export packing

Delivery

Within 7 days in stock

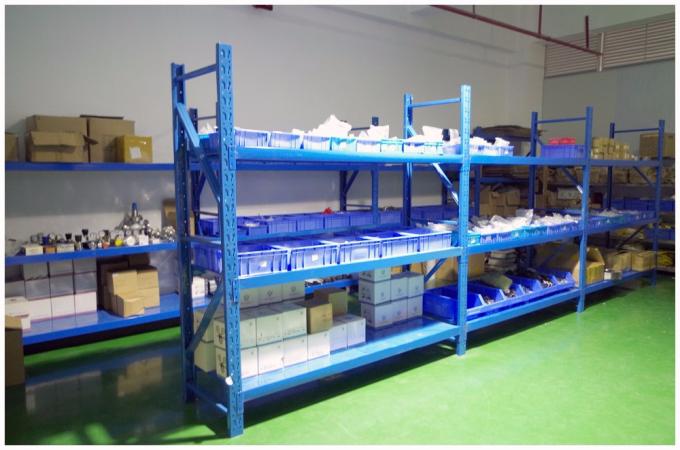

Our Company



High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm ODHigh Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD







FAQ



Q: Are you trading company or manufacturer ?
A: We are factory.



Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.

Q: What is your payment ?
A: T/T , PayPal , Western Union
